Triggers

Triggers define when and how your Kwala workflows are activated. They are the “listening” mechanism that watches for specific events, conditions, or time intervals to automatically execute your workflows. Triggers eliminate the need for manual intervention or constant polling.

Type of triggers in Kwala workflows

Kwala supports multiple trigger types that can be used individually or combined:

Event-based - React to on-chain events in real-time
Time-based - Execute workflows on a schedule
Recurring - Continuously monitor and respond to events
API-based - Start a workflow from an inbound HTTP request

Event-based triggers

Event-based triggers listen for specific blockchain events and execute workflows when those events occur.

Basic event trigger

The following example demonstrates a basic event-based trigger that monitors a smart contract on Ethereum mainnet for Transfer events. Whenever tokens are transferred from the specified contract, this trigger will activate the workflow.

trigger:
  triggerChainID: 1
  triggerSourceContract: "0x742d35Cc6e9A5f1e7A0e6FD4C8b2Bc3F5d9E1234"
  triggerSourceContractABI: '[{"anonymous":false,"inputs":[{"indexed":true,"name":"from","type":"address"},{"indexed":true,"name":"to","type":"address"},{"indexed":false,"name":"value","type":"uint256"}],"name":"Transfer","type":"event"}]'
  triggerEventName: "Transfer"

This trigger will activate whenever a Transfer event is emitted from the specified contract.

Filtered event trigger

The following example shows how to add filters to narrow down which events trigger your workflow. This configuration only activates when transfers come from a specific address and exceed 1 token in value, reducing unnecessary executions.

trigger:
  triggerChainID: 1
  triggerSourceContract: "0x742d35Cc6e9A5f1e7A0e6FD4C8b2Bc3F5d9E1234"
  triggerSourceContractABI: '[...]'
  triggerEventName: "Transfer"
  triggerEventFilter:
    from: "0xSpecificAddress..."
    value: ">1000000000000000000"  # Greater than 1 token

Common Filter Operators:

Exact match: "0xAddress..."
Greater than: ">value"
Less than: "<value"
Range: ">=value,<=value"
Multiple values: ["value1", "value2"]

Time-based triggers

Execute workflows at specific times or intervals without requiring on-chain events.

Interval-based execution

The following example configures a time-based trigger that executes the workflow every hour (3600 seconds). This is useful for periodic tasks like checking balances, updating oracle prices, or performing maintenance operations.

trigger:
  repeatEvery: "3600"  # Every hour (in seconds)
  triggerChainID: 1

Common Intervals:

Every minute: "60"
Every hour: "3600"
Every day: "86400"
Every week: "604800"

Cron-style scheduling

The following example uses cron notation to schedule workflow execution at midnight every day. Cron patterns provide more flexibility for complex scheduling needs compared to simple intervals.

trigger:
  repeatEvery: "0 0 * * *"  # Every day at midnight
  triggerChainID: 1

Common Cron Patterns:

Every day at 9 AM: "0 9 * * *"
Every Monday: "0 0 * * 1"
Every 6 hours: "0 */6 * * *"
First day of month: "0 0 1 * *"

Delayed execution

The following example delays workflow execution until a specific Unix timestamp is reached. This is useful for scheduled launches, time-locked operations, or coordinated events.

trigger:
  executeAfter: 1735689600  # Unix timestamp
  triggerChainID: 1

The following example delays execution until a specific block number is reached on the blockchain. This ensures precise timing based on block production rather than real-world time.

trigger:
  executeAfter: "block:18000000"  # After specific block
  triggerChainID: 1

Recurring triggers

Recurring triggers continuously monitor for events and re-execute the workflow each time the event occurs. The following example creates a recurring trigger that monitors a Polygon contract for deposit events where the amount exceeds 100 million (in the token’s smallest unit). It checks every 60 seconds and executes the workflow each time a matching deposit is found.

trigger:
  recurringChainID: 137
  recurringSourceContract: "0xPolygonContract..."
  recurringSourceContractABI: '[...]'
  recurringEventName: "Deposit"
  recurringEventFilter:
    amount: ">100000000"
  repeatEvery: "60"  # Check every minute

This creates a persistent listener that:

Checks for new events every 60 seconds
Executes the workflow when matching events are found
Continues monitoring indefinitely

You can also drive the recurring flow over HTTP by setting RepeatEvery: api. This exposes a second HTTP endpoint, with its own method, authentication, and schema, that re-runs the workflow each time it is called. See API triggers below.

API triggers (Web2 triggers)

API triggers start a workflow from outside the blockchain. Instead of waiting for an on-chain event, price movement, or time interval, the workflow exposes an HTTP endpoint that any Web2 app, backend, webhook, or manual request can call. When a valid request arrives, Kwala runs the workflow’s actions on-chain. Use an API trigger to:

Start a workflow from a web/mobile app, a backend, or a cron job
Turn a third-party webhook into an on-chain action
Manually trigger a workflow for testing or ops
Bridge any external system that can send an HTTP request into your Web3 automation

An API trigger swaps on-chain listening for an HTTP endpoint. Everything downstream — actions, execution mode, on-chain settlement — works like any other Kwala workflow.

The two flows

Every API trigger exposes two independent endpoints, configured separately:

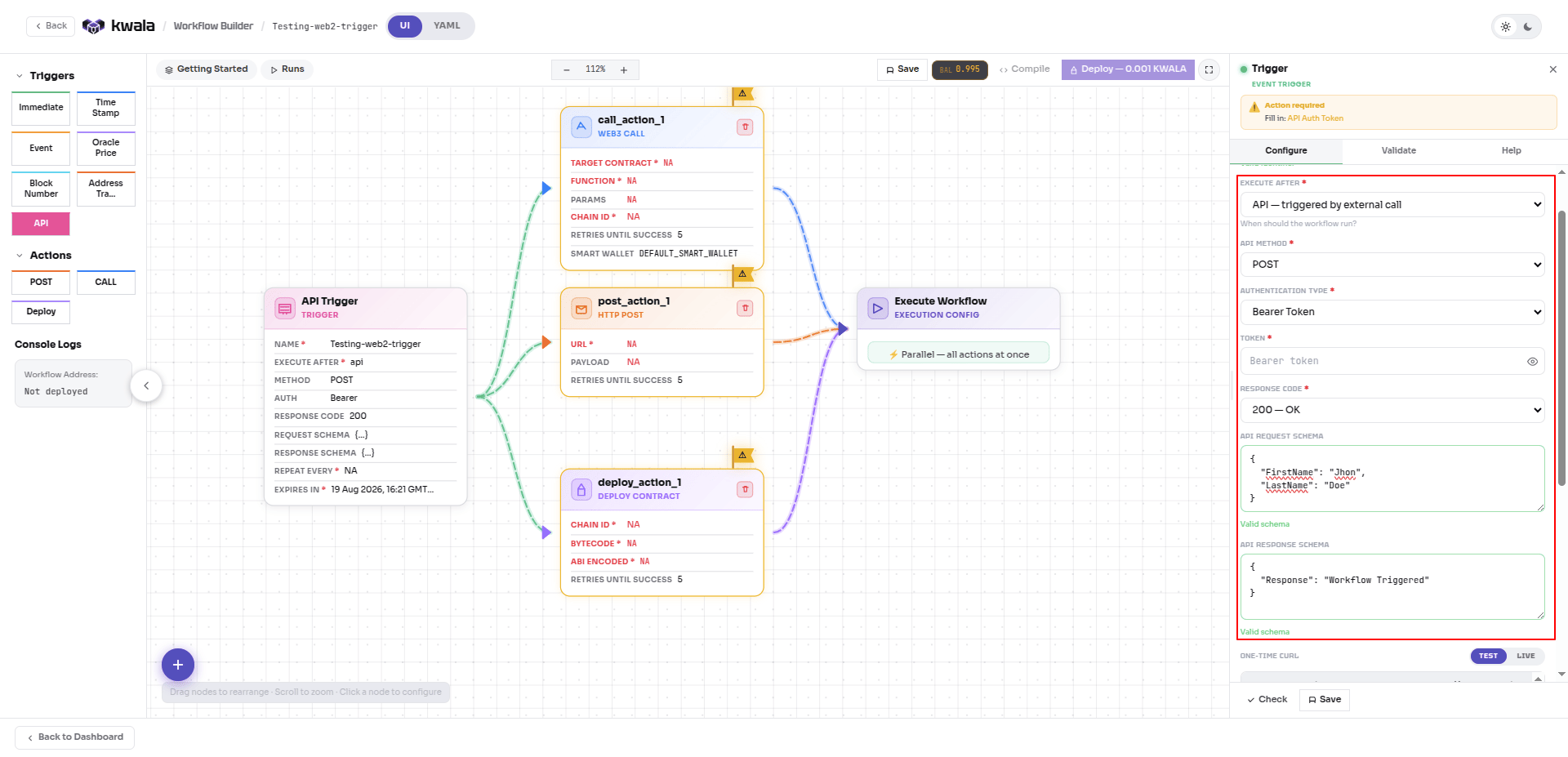

One-time flow (ExecuteAfter: api) — the primary trigger; its endpoint starts the workflow when called.

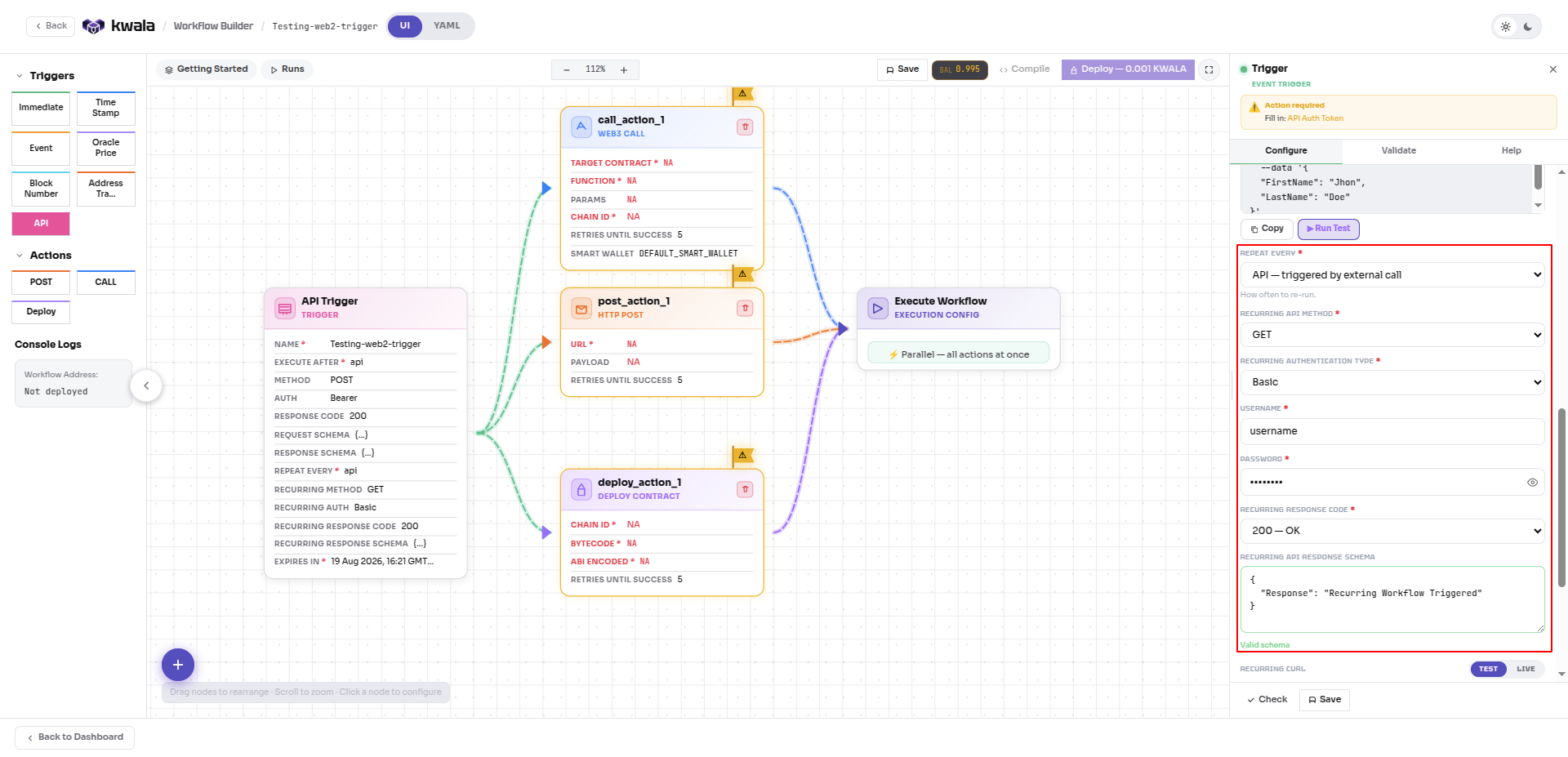

Recurring flow (RepeatEvery: api) — an optional secondary trigger; its endpoint can be called repeatedly to re-run the workflow.

They don’t have to match — for example, POST with no auth for the one-time flow, PATCH with Basic auth for the recurring flow.

RepeatEvery need not be api; it supports any trigger type (event, price condition, or time interval). Setting RepeatEvery: api simply means the recurring flow is also driven by an HTTP call.

Configuration fields

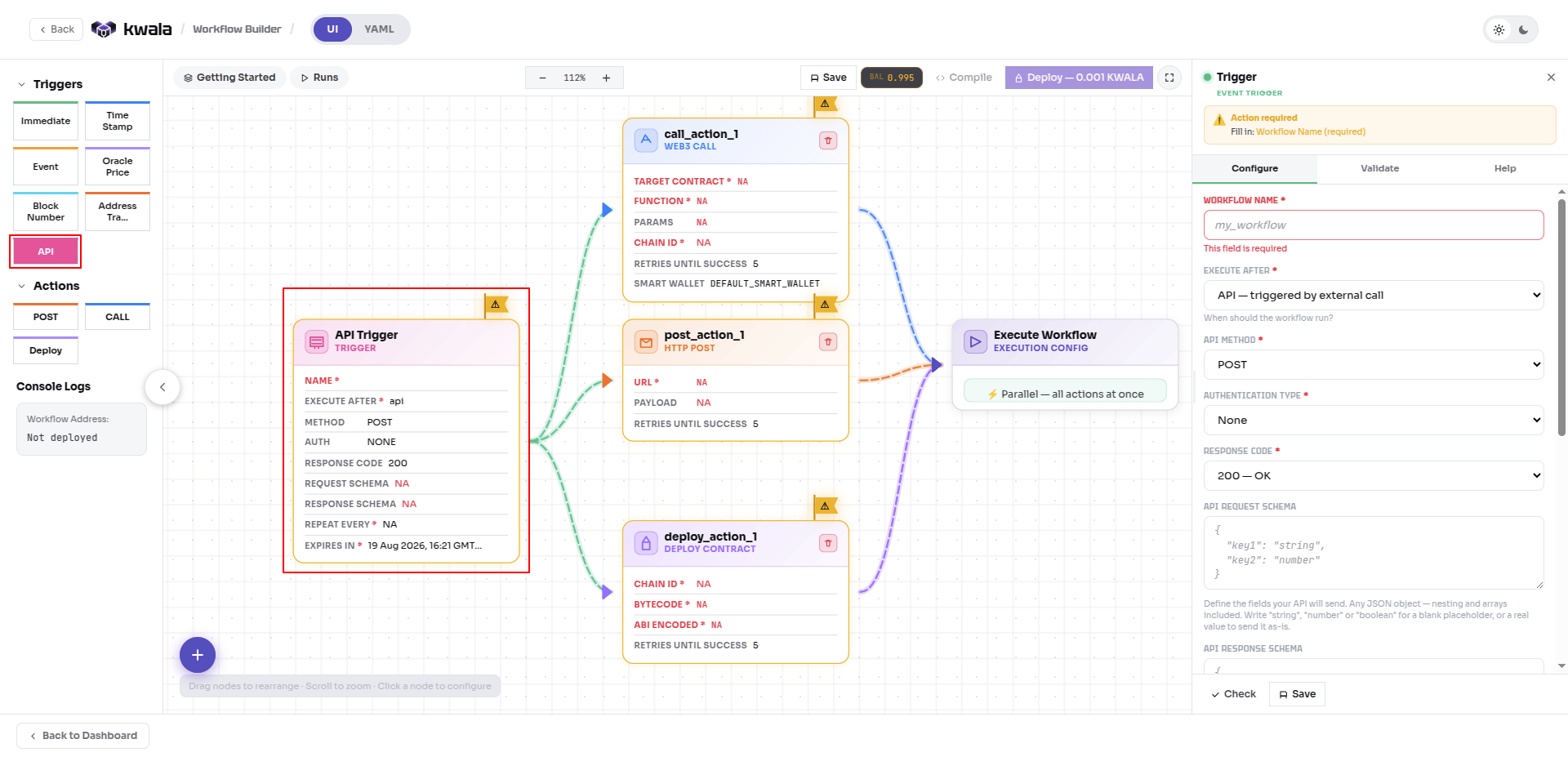

Configure an API trigger from the Trigger panel in the Workflow Builder. Select API as the trigger type, then set the following. API method — the HTTP method the endpoint accepts:

Method	Typical use
GET	Trigger with no request body
POST	Trigger with a request body (most common)
PUT	Full-resource update payload
PATCH	Partial-update payload
DELETE	Removal or teardown action

Authentication type — how Kwala verifies a request is allowed to trigger the workflow:

Type	Description
None	No auth. Anyone with the URL can trigger.
Basic	HTTP Basic auth (username + password).
Bearer	Bearer token in the `Authorization` header.
APIKey	A key supplied in a request header.
JWT	A signed JSON Web Token validated on each request.

Use None only for testing or public-safe endpoints. For any production endpoint that performs on-chain actions, always use Basic, Bearer, APIKey, or JWT.

Response code — the HTTP status Kwala returns to the caller when the request is accepted. All standard codes are supported (2xx success, 3xx redirection, 4xx client errors, 5xx server errors); most workflows use 200 — OK. API request schema — the JSON shape Kwala expects in the request body. Write "string", "number", or "boolean" for a blank placeholder, or a real value to send it as-is. API response schema — the JSON body Kwala returns to the caller after accepting the request.

Schema value rules. Inside a schema, strings are quoted and everything else is not (age: 27, active: true, middleName: null). The words string, number, and boolean are type placeholders — they generate blank fields and cannot be sent as literal values. Anything else is passed through exactly as written.

Method examples

Each example configures the one-time flow with a different HTTP method, paired with a different authentication type and response code, so you can see the full range. 1. GET with no authentication — takes no request body, open to any caller. Suitable for a public, read-safe trigger or for testing.

Trigger:
TriggerAPIType: GET
TriggerAPIAuthType: NONE
TriggerAPIAuthConfig: NA
TriggerAPIResponseCode: 200
TriggerAPIResponseSchema:
  status: "accepted"
ExecuteAfter: api

2. POST with Basic authentication — accepts a request body, protected by HTTP Basic authentication, returns 201 — Created.

Trigger:
TriggerAPIType: POST
TriggerAPIAuthType: Basic
TriggerAPIAuthConfig:
  username: user
  password: pass
TriggerAPIResponseCode: 201
TriggerAPIRequestSchema:
  name: "string"
  email: "string"
TriggerAPIResponseSchema:
  status: "accepted"
  userId: "number"
ExecuteAfter: api

3. PUT with Bearer authentication — carries a full-resource payload, requires a bearer token in the Authorization header, returns 200 — OK.

Trigger:
TriggerAPIType: PUT
TriggerAPIAuthType: Bearer
TriggerAPIAuthConfig:
  token: your-bearer-token
TriggerAPIResponseCode: 200
TriggerAPIRequestSchema:
  orderId: "string"
  status: "string"
TriggerAPIResponseSchema:
  status: "updated"
ExecuteAfter: api

4. PATCH with APIKey authentication — carries a partial-update payload, requires an API key in a request header, returns 202 — Accepted.

Trigger:
TriggerAPIType: PATCH
TriggerAPIAuthType: APIKey
TriggerAPIAuthConfig:
  keyName: X-Api-Key
  keyValue: devtr-your-api-key
  location: header
TriggerAPIResponseCode: 202
TriggerAPIRequestSchema:
  amount: "number"
TriggerAPIResponseSchema:
  status: "queued"
ExecuteAfter: api

5. DELETE with JWT authentication — initiates a teardown or removal action, validates a signed JSON Web Token on each request, returns 200 — OK.

Trigger:
TriggerAPIType: DELETE
TriggerAPIAuthType: JWT
TriggerAPIAuthConfig:
  token: your-jwt-token
TriggerAPIResponseCode: 200
TriggerAPIRequestSchema:
  subscriptionId: "string"
TriggerAPIResponseSchema:
  status: "removed"
ExecuteAfter: api

Generated YAML

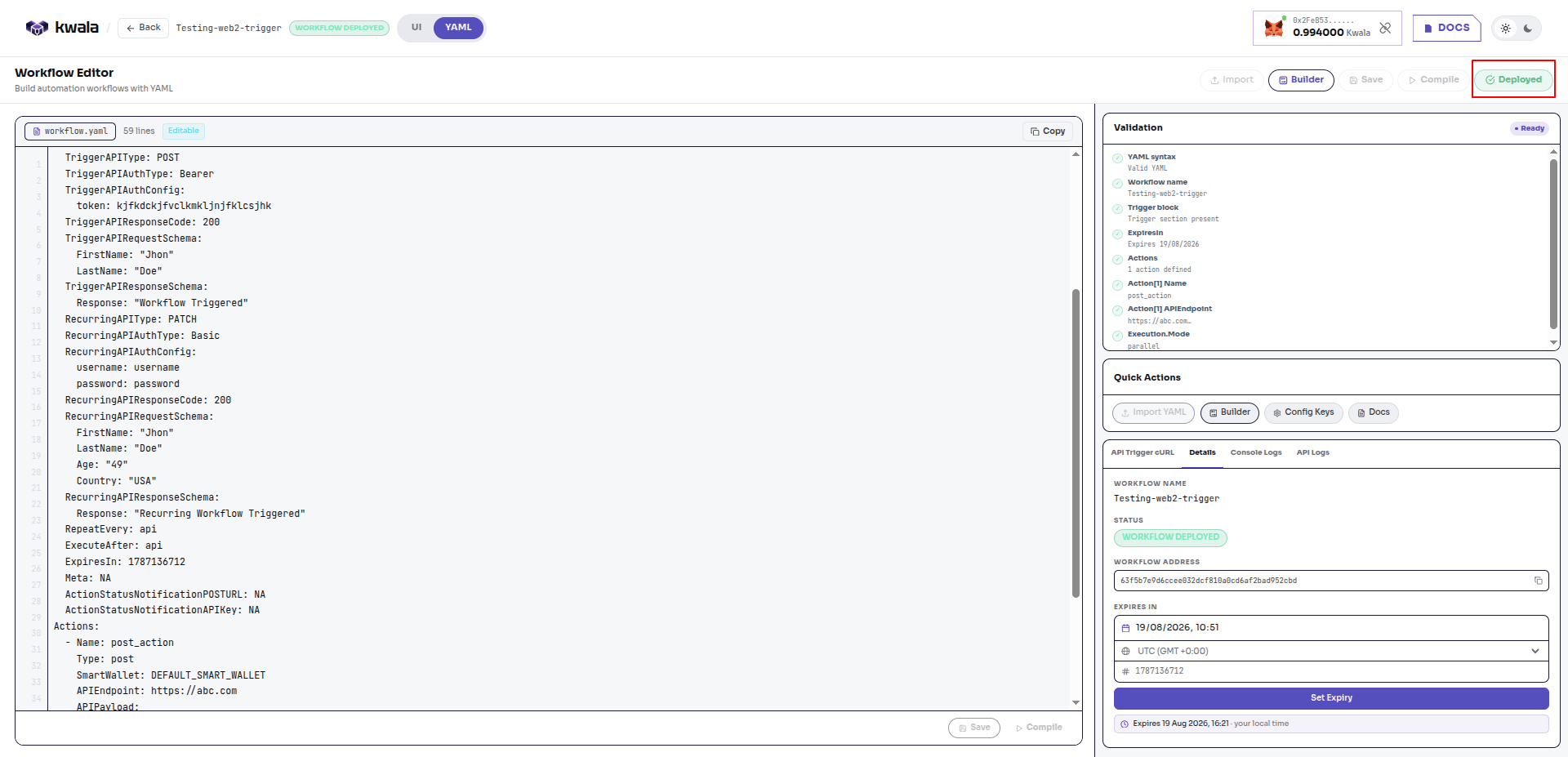

After you configure the trigger in the builder, switch to the YAML toggle at the top of the editor to review the generated workflow definition. The following example shows a workflow with a POST one-time flow and a PATCH recurring flow.

Name: Testing_API_Trigger

Trigger:

# One-time (ExecuteAfter) flow
TriggerAPIType: POST
TriggerAPIAuthType: NONE
TriggerAPIAuthConfig: NA
TriggerAPIResponseCode: 200
TriggerAPIRequestSchema:
  name: "string"
  amount: "number"
TriggerAPIResponseSchema:
  status: "accepted"

# Recurring (RepeatEvery) flow
RecurringAPIType: PATCH
RecurringAPIAuthType: Basic
RecurringAPIAuthConfig:
  username: user
  password: pass
RecurringAPIResponseCode: 200
RecurringAPIRequestSchema:
  amount: "number"
RecurringAPIResponseSchema:
  status: "queued"

RepeatEvery: api

Using trigger data in actions

A workflow started by an API trigger can read values from the incoming request body and pass them into its actions using re.object(\"<field>\"), written wherever an action expects a value. Kwala substitutes the matching field at run time. Forward fields into an outbound API action:

APIPayload:
  customer: "re.object(\"name\")"
  age: "re.object(\"age\")"
  source: "kwala-workflow"   # fixed values pass through as written

Pass fields as contract-call arguments, in the order the function expects:

TargetFunction: function registerUser(string name, uint256 age)
TargetParams:
  - "re.object(\"name\")"
  - "re.object(\"age\")"
  - "10000"                  # references and constants can mix

Good to know:

Types survive — a number arrives as a number, a boolean as a boolean.
Nested objects and arrays come through whole; reference them once.
The left-hand key is yours to rename; the argument inside re.object() is the field in the incoming body.
References are not validated before deploy — a misspelled field compiles cleanly, then resolves empty or fails at run time. Check the Console Logs after your first test run.
GET and DELETE carry no request body, so there is nothing for re.object() to read.

re.object() reads a named field from a JSON body (what an API trigger provides). Event triggers use re.event() for positional event data — different helpers for different input shapes.

Lifecycle and expiry

Saving, compiling, and deploying an API trigger follows the same order as any workflow: Save stores the definition; Compile validates it as a dry run (nothing goes on-chain, and the button resets on any edit); Deploy puts it live, costs 0.001 KWALA, and stays disabled until a clean compile. A duplicate workflow name blocks all three. The workflow key in the trigger URL is your workflow name joined to your wallet address (<name>_<wallet>). It is generated at compile/deploy — do not construct it by hand.

API trigger workflows are automatically set to expire 1 day after deployment. Redeploy to keep a long-running endpoint active.

API trigger field reference

Field	Required	Flow	Description
TriggerAPIType	Required	One-time	HTTP method: `GET`, `POST`, `PUT`, `PATCH`, or `DELETE`
TriggerAPIAuthType	Required	One-time	`NONE`, `Basic`, `Bearer`, `APIKey`, or `JWT`
TriggerAPIAuthConfig	Optional	One-time	Credentials for the chosen auth type (`NA` when `NONE`)
TriggerAPIResponseCode	Required	One-time	HTTP status code returned to the caller
TriggerAPIRequestSchema	Optional	One-time	JSON shape expected in the request body
TriggerAPIResponseSchema	Optional	One-time	JSON body returned to the caller
RecurringAPIType	Optional	Recurring	HTTP method for the recurring endpoint
RecurringAPIAuthType	Optional	Recurring	Authentication type for the recurring endpoint
RecurringAPIAuthConfig	Optional	Recurring	Credentials for the recurring endpoint
RecurringAPIResponseCode	Optional	Recurring	HTTP status code returned by the recurring endpoint
RecurringAPIRequestSchema	Optional	Recurring	JSON shape expected by the recurring endpoint
RecurringAPIResponseSchema	Optional	Recurring	JSON body returned by the recurring endpoint
RepeatEvery	Optional	Recurring	Set to `api` to drive the recurring flow via HTTP

Trigger expiration

Set an expiration to automatically stop trigger monitoring. The following example configures a trigger that runs every hour but automatically stops monitoring at the specified Unix timestamp. This prevents indefinite execution and helps control costs.

trigger:
  triggerChainID: 1
  repeatEvery: "3600"
  expiresIn: 1735689600  # Unix timestamp when trigger stops

The following example shows how to set expiration as a duration in seconds (30 days = 2,592,000 seconds) rather than a specific timestamp. The trigger will automatically stop 30 days after deployment.

trigger:
  triggerChainID: 1
  repeatEvery: "3600"
  expiresIn: "2592000"  # Expires after 30 days

Expired triggers will not execute workflows, even if conditions are met. You’ll need to redeploy or update the workflow to reactivate it.

Combining triggers

You can combine different trigger types for more sophisticated workflows:

Combine event and time-based triggers

You can use triggers to monitor events on multiple blockchains. The following example combines event-based and time-based triggers in a monitoring workflow. It watches for large transfer events but only between specific dates, checking every 5 minutes during the active period.

trigger:
  # Event-based trigger
  triggerChainID: 1
  triggerSourceContract: "0xContract..."
  triggerEventName: "LargeTransfer"

  # Time-based component
  executeAfter: 1735689600  # Only start monitoring after this date
  expiresIn: 1767225600     # Stop monitoring after this date

  # Recurring check
  repeatEvery: "300"  # Check every 5 minutes

Multi-chain monitoring

The following example demonstrates cross-chain monitoring by tracking related events on both Ethereum and Polygon. This is useful for bridge monitoring, cross-chain messaging, or coordinating actions across multiple networks.

trigger:
  # Primary trigger on Ethereum
  triggerChainID: 1
  triggerSourceContract: "0xEthContract..."
  triggerEventName: "Bridged"

  # Also monitor on Polygon
  recurringChainID: 137
  recurringSourceContract: "0xPolygonContract..."
  recurringEventName: "Received"
  repeatEvery: "120"

Trigger field reference

Field	Required	Description
TriggerChainID	Required	The chain where the triggering event will occur
TriggerSourceContract	Optional	Contract address emitting the event
TriggerSourceContractABI	Optional	ABI of the trigger contract (if event-based)
TriggerEventName	Optional	Name of the event to listen for, for example, Transfer
TriggerEventFilter	Optional	Filters for the event (indexed values, sender, etc.)
RecurringChainID	Optional	If this is a repeating event, specify the chain
RecurringSourceContract	Optional	Contract emitting the recurring event
RecurringSourceContractABI	Optional	ABI for the recurring event contract
RecurringEventName	Optional	Name of the recurring event
RecurringEventFilter	Optional	Filter for recurring events
RepeatEvery	Optional	Cron notation or number of seconds for interval-based execution
ExecuteAfter	Optional	A specific block height or timestamp after which to run
ExpiresIn	Optional	Unix timestamp or seconds until the trigger becomes invalid
ActionStatusNotificationPOSTURL	Optional	Endpoint to notify about action status
ActionStatusNotificationAPIKey	Optional	API key for secure notifications
Meta	Optional	Optional metadata

Webhook notifications

Get notified about workflow execution status via webhooks. The following example configures webhook notifications to receive real-time updates about workflow execution status. The workflow sends POST requests to your endpoint with execution details, status, and metadata.

trigger:
  triggerChainID: 1
  triggerSourceContract: "0x..."
  triggerEventName: "Transfer"

  # Webhook configuration
  actionStatusNotificationPOSTURL: "https://api.example.com/webhook"
  actionStatusNotificationAPIKey: "sk_live_abc123"
  meta: "Production webhook for transfers"

When your workflow executes, Kwala will send a POST request to your configured webhook endpoint with detailed information about the execution. The following example shows the structure of the webhook payload you’ll receive, including workflow details, execution status, action results, and metadata.

{
  "workflowName": "Token Transfer Monitor",
  "executionId": "exec_abc123",
  "status": "success",
  "timestamp": 1735689600,
  "actions": [
    {
      "name": "Send Alert",
      "status": "completed",
      "gasUsed": "21000"
    }
  ],
  "metadata": {
    "chainId": 1,
    "triggerEvent": "Transfer"
  }
}

Best practices

Choose the right trigger type
- Use event-based triggers for real-time reactions to on-chain events
- Use time-based triggers for scheduled maintenance or batch processing
- Use recurring triggers for continuous monitoring
- Use API-based triggers to start workflows from external Web2 systems
Optimize check intervals - Balance responsiveness with cost:
- Critical monitoring: 30-60 seconds
- Regular monitoring: 5-15 minutes
- Batch processing: hourly or daily
- More frequent checks consume more credits
Use filters effectively - Add filters to reduce unnecessary workflow executions:
- Filter by specific addresses
- Filter by value thresholds
- Filter by indexed event parameters
Set appropriate expirations - Always set expiration dates to:
- Prevent runaway costs
- Ensure workflows don’t run indefinitely
- Allow for workflow updates and maintenance
Test triggers thoroughly
- Start with shorter intervals during testing
- Verify filters match expected events
- Confirm webhook notifications work correctly
Monitor webhook endpoints - Ensure webhook endpoints are:
- Always available (99.9%+ uptime)
- Protected with API keys
- Able to handle high request volumes
- Responding quickly (< 5 seconds)
Secure your webhooks - Always use the actionStatusNotificationAPIKey field to secure webhook notifications. Never expose webhook URLs publicly without authentication:
- Use API keys for all webhook endpoints
- Validate webhook signatures in your backend
- Use HTTPS for all webhook URLs
- Implement rate limiting on webhook endpoints
- Log all webhook calls for audit purposes
- Set appropriate expiration dates

Next steps

Address Tracking

Monitor addresses for any on-chain activity

Working with Actions

Learn how to define workflow actions

Workflow Execution

Understand workflow execution flow

Use Cases

See triggers in real-world scenarios

Overview

Getting started

Use the Workflow Builder

Use cases

Concepts

Reference

Resources

Type of triggers in Kwala workflows

Event-based triggers

Basic event trigger

Filtered event trigger

Time-based triggers

Interval-based execution

Cron-style scheduling

Delayed execution

Recurring triggers

API triggers (Web2 triggers)

The two flows

Configuration fields

Method examples

Generated YAML

Using trigger data in actions

Lifecycle and expiry

API trigger field reference

Trigger expiration

Combining triggers

Combine event and time-based triggers

Multi-chain monitoring

Trigger field reference

Webhook notifications

Best practices

Next steps

Address Tracking

Working with Actions

Workflow Execution

Use Cases

​Type of triggers in Kwala workflows

​Event-based triggers

​Basic event trigger

​Filtered event trigger

​Time-based triggers

​Interval-based execution

​Cron-style scheduling

​Delayed execution

​Recurring triggers

​API triggers (Web2 triggers)

​The two flows

​Configuration fields

​Method examples

​Generated YAML

​Using trigger data in actions

​Lifecycle and expiry

​API trigger field reference

​Trigger expiration

​Combining triggers

​Combine event and time-based triggers

​Multi-chain monitoring

​Trigger field reference

​Webhook notifications

​Best practices

​Next steps

Address Tracking

Working with Actions

Workflow Execution

Use Cases

Type of triggers in Kwala workflows

Event-based triggers

Basic event trigger

Filtered event trigger

Time-based triggers

Interval-based execution

Cron-style scheduling

Delayed execution

Recurring triggers

API triggers (Web2 triggers)

The two flows

Configuration fields

Method examples

Generated YAML

Using trigger data in actions

Lifecycle and expiry

API trigger field reference

Trigger expiration

Combining triggers

Combine event and time-based triggers

Multi-chain monitoring

Trigger field reference

Webhook notifications

Best practices

Next steps
